Scale for the 2-D DXF/DWG Import

Drawing > New/Open > Open > Settings

Via Drawing > New/Open > Open > Settings > Scale  you can set the scale for converting a DXF file into a HiCAD drawing.

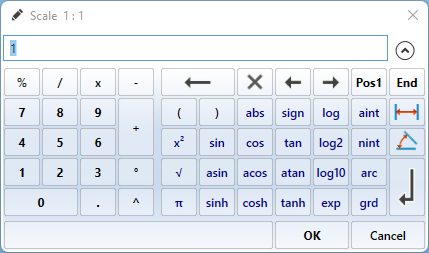

Enter the desired scale in the input dialogue. Default is 1:1.

The DXF file is then converted to the specified scale during import.
