Parallellism
3-D Standard > HCM > Parallelism...

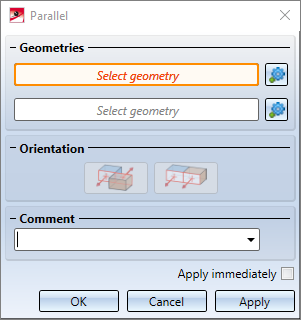

You use this constraint to enforce the parallelism of two geometries.
Identify as Geometries the two geometry elements that you want to lie parallel to one another.
The other control elements are described in the topic Dimensional and Positional Constraints.
The Orientation can be specified if there is a parallelism constraint between
- Lines
- Cylinders or
- 2 planes.
