Connections / Design Variants
"Civil Engineering functions" docking window > Metal Engineering/Facade Engineering
In the Civil Engineering functions docking window you can find the Metal Engineering / Facade Engineering entry.
When you expand all levels of this entry, the Design Variants for 3-D Metal Engineering and 2-D Metal Engineering will be displayed:

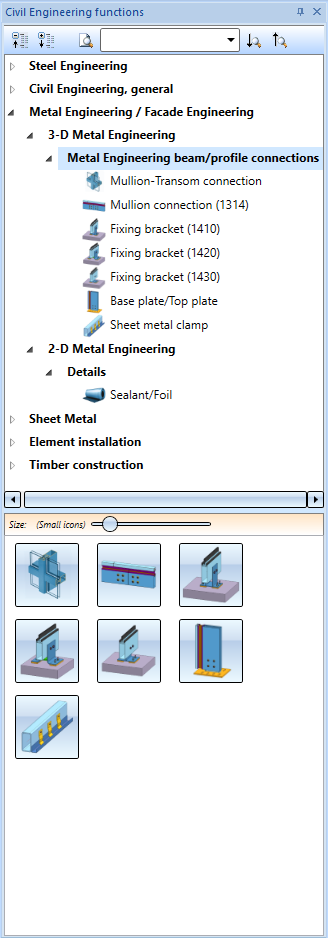

Civil Engineering docking window
Civil Engineering functions: Metal Engineering / Facade Engineering
The following design variants are available:
3-D Metal Engineering
- Mullion/-Transom connection
- Transom connection (1314)
- Fixing bracket (1410)
- Fixing bracket (1420)
- Fixing bracket (1430)
- Base plate/Top plate
- Sheet metal clamp
2-D Metal Engineering:
