Extend Coating

Sheet Metal > Process > Coating > Extend coating

Steel Engineering > Further functions > Coating > Extend coating

When processing a coated part, the coating will not be automatically applied to the respective processing (e.g. to new flanges, bores or corner processings). You can use the Extend coating function to apply the coating to the new or processed elements. To change the coating colour, simply call the Coating feature.

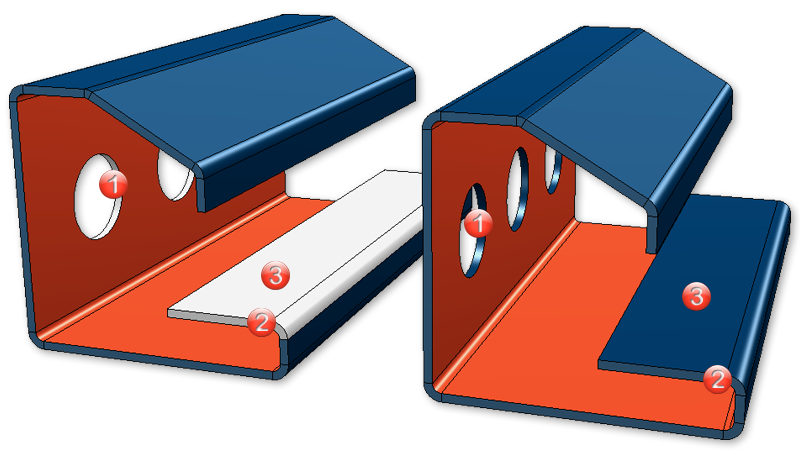

(1) Front surface of bore (front surface like outer side)
(2) Front surface of flange, bend zone (front surface like outer side)
(3) Outer side of flange
