ROHR2 Interface

Plant Engineering > Evaluation > Active > ROHR2

With the neutral ROHR2 interface, HiCAD Plant Engineering data can be further used in ROHR2. ROHR2 from the SIGMA Ingenieurgesellschaft mbH is a program system for static and dynamic analysis of complex piping systems and general bar structures.

From HiCAD pipeline data all ROHR2 input data can be transferred automatically via this interface.

The following functions are available:

Start ROHR2

With this function the pipeline is exported as NTR file and then the programme ROHR2 is started.

The ROHR2 program is not part of HiCAD's scope of delivery. If the program is installed on your computer, you have to set the path and programme name accordingly in the HiCAD system file ROHR2PROGNAME.DAT (SYS directory), e.g. E:\ROHR2\R2WIND.EXE.

Only create NTR files

This function exports all pipelines as NTR files in one step.

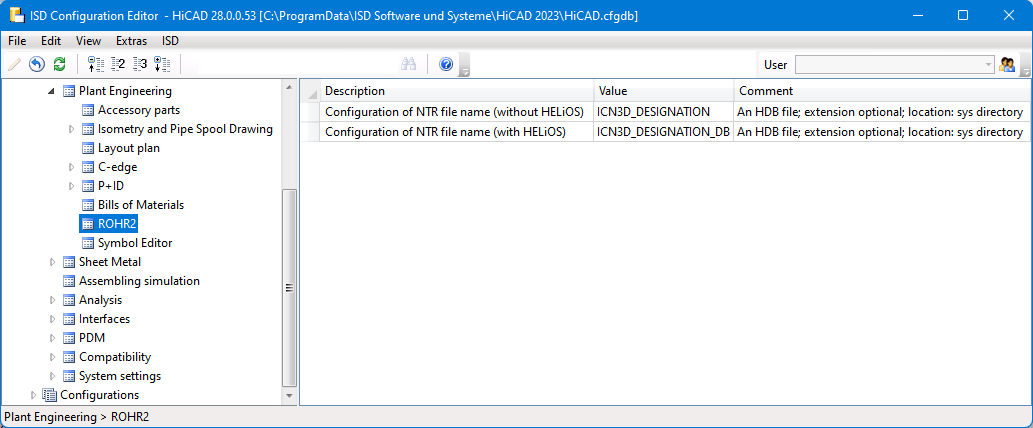

The file name can be configured flexibly via HDB files. For this purpose the following parameters are available in the Configuration Editor at Plant Engineering > ROHR2.

  • Configuration of NTR file name (without HELiOS) and
  • Configuration of NTR file name (with HELiOS)

The files ICN3D_DESIGNATION and ICN3D_ DESIGNATION_DB are used as ISD default settings. These are the HDB files which are also used for the display of the column Designation of the ICN window 3D Part Structure. This means that the part number of the pipeline is used as the file name by default or - if this is not available - the part name.

If you want to use a different file name, you can adapt the files accordingly or use your own files. For more information, see the topic HDX and HDB Files.



When changing the ICN3D_DESIGNATION and ICN3D_DESIGNATION_DB files, please note that these changes also affect the ICN display!

Alternatively, you can create your own HDB files and set them in the Configuration Editor. The files must have the extension .HDB and be located in the HiCAD sys directory.



Example:

You want to use Designation 1 (Attribute $01) or Designation 2 (Attribute $02) of the pipeline as the names of the NTR files, but do not want to change the ICN display. Then you could create copies of the above files, e.g. ICN_NTR_PLANT and ICN_NTR_PLANT_DB, adapt them accordingly and then set them in the Configuration Editor:

ICN_NTR_PLANT.HDB

ICN_NTR_PLANT_DB.HDB

HDB

# Configuration file for the output of any number of

# HiCAD part attributes instead of the part name in the 3-D browser.

# TEXT - Commentary ( will not be displayed )

# ATTR - Attribute to be displayed

# TYP - STRING(default), DOUBLE

# NKS - Decimal places

# <H> - HiCAD part attribute

# <E> - Features

# _BEGIN_OR_ _END_OR_ - "ODER" link

_BEGIN_OR_

<H>::TEXT=""::ATTR="$01"::TYP="WCHAR"

<H>::TEXT=""::ATTR="$02"::TYP="WCHAR"

<E>::TEXT="Teilename"::ATTR="NAME"::TYP="STRING"

_END_OR_

HDB

# Configuration file for the output of any number of

# HiCAD part attributes instead of the part name in the 3-D browser.

# TEXT - Commentary ( will not be displayed )

# ATTR - Attribute to be displayed

# TYP - STRING(default), DOUBLE

# NKS - Decimal places

# <H> - HiCAD part attribute

# <E> - Features

# _BEGIN_OR_ _END_OR_ - "ODER" link

_BEGIN_OR_

<T>::TEXT="Normbezeichnung"::ATTR="NORMBEZEICHNUNG"

<T>::TEXT="Sachnummer"::ATTR="HEL_SACHNUMMER"

<D>::TEXT="Dokumentnr."::ATTR="HEL_DOKUNUMMER"

<H>::TEXT=""::ATTR="$01"::TYP="WCHAR"

<H>::TEXT=""::ATTR="$02"::TYP="WCHAR"

<E>::TEXT="Teilename"::ATTR="NAME"::TYP="STRING"

_END_OR_



Please note that loose flanges are not transferred to ROHR2 !



Please note:

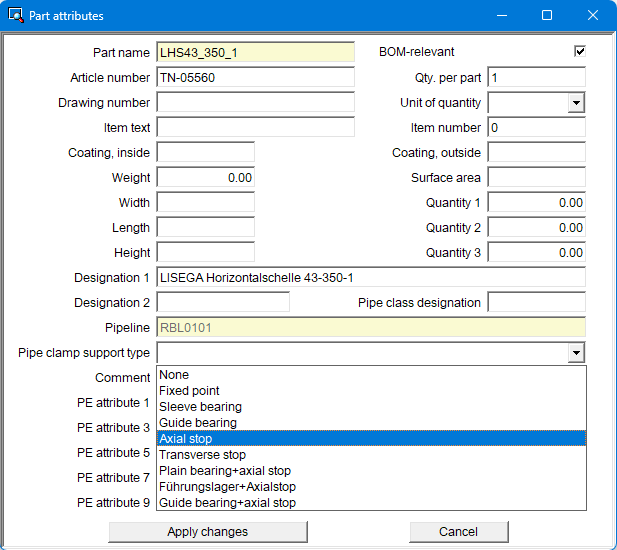

he attribute Pipe clamp support type - attribute name PIPE_SUPPORT_TYPE - can be assigned to pipe clamps in the part attributes.

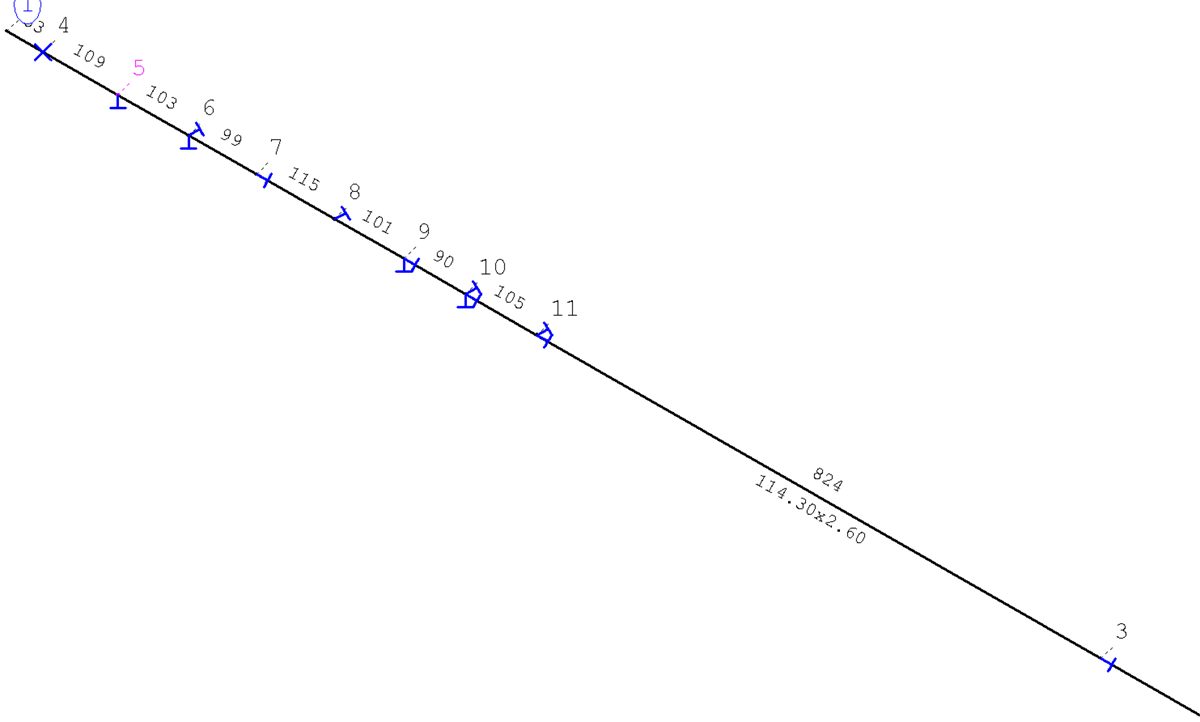

By assigning this attribute, different pipe clamp types can be displayed in ROHR2.



LAST meta data

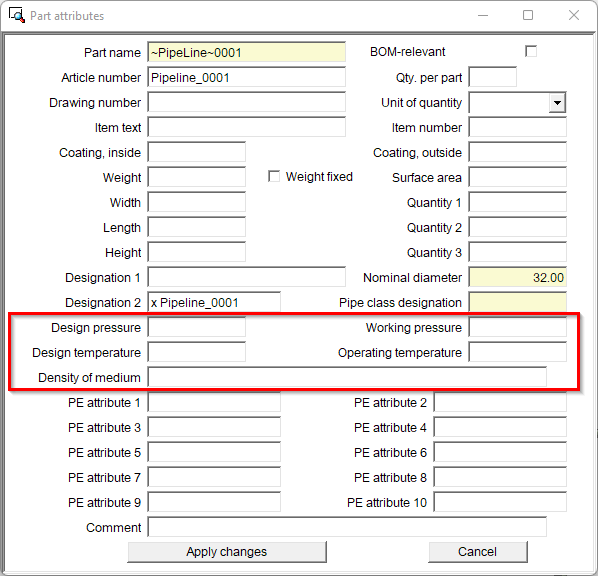

In the Part attributes dialogue window of a pipeline you can specify the

These attributes will be transferred during export via the pipeline interface.



Attributes

Design pressure

PIPE_PA

Working pressure

PIPE_PB

Design temperature

PIPE_TA

Operating temperature

PIPE_TB

Density of medium

PIPE_GAMMED



Notes on ROHR2 export
