Dimensioning Tools - Further Table Functions

Angle table

Creates a table containing all angular dimensions of the current drawing.

1. Select the view in which you want to display the Angle table: In the active view, in a view to be specified or in all views.
2. Specify the position of the table.

Use the following functions to insert tables of DIN ISO 2768 and DIN EN ISO 13920 into the drawing, e.g.

Determine one point on the table at a time and then the position of that point in the drawing.

Please note that the tables are 2-D texts and can only be edited using the 2-D tab of the ICN.

DIN ISO 2768 Table 1 - Limit dimensions for length dimensions except for broken edges

DIN ISO 2768 Table 2 - Upper and lower limits for rounding radii and chamfer heights

DIN ISO 2768 Table 3 - Upper and lower limits for entered angle dimensions

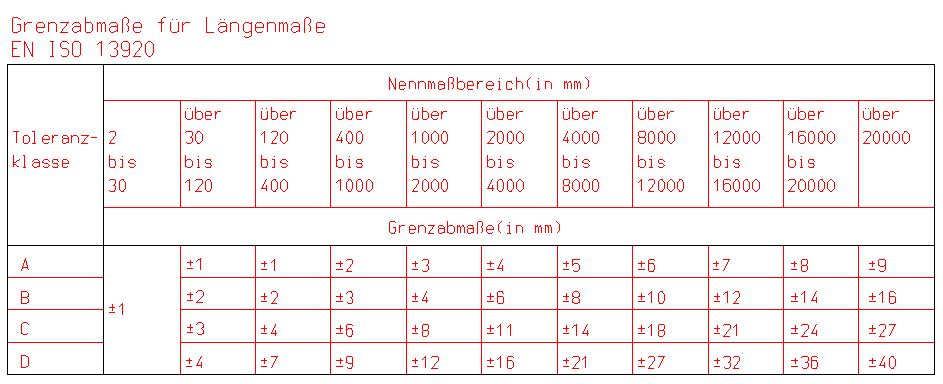

DIN EN ISO 13920 Table 1 - Limit dimensions for linear dimensions

DIN EN ISO 13920 Table 2 - Limit dimensions for angular dimensions

DIN EN ISO 13920 Table 3 - Straightness, flatness and parallelism tolerances

Edit table

Move dimension table

Moves a Fits table or Angle table.

Update tabular dimensions, Individual

Adjusts the identified Fits table or Angle table to changes in the drawing.

Update tabular dimensions, Entire drawing

Adjusts all Fits tables and Angle tables to changes in the drawing.

Delete tabular dimensions, Individual

Deletes the identified Fits table or Angle table.
