Clone and Mirror

2-D Part > Clone > Clone part, Mirror on line

2-D Part > Clone > Mirror > Clone part, Mirror via 2 points

This function creates the cloned parts by copying the original and simultaneously mirroring it on an axis. Depending on which function you choose, the axis can be identified by means of a line or 2 points.

You can address the clones as independent parts, i.e. non-unioned, or unioned in the active part. If you activate Create Superordinate Part, a new part (e.g. Group) to which the clones and the original part are subordinate is created in the ICN.

1. Select whether you want the copies to be unioned.
2. Use a line or 2 points to identify the mirroring axis, depending on which function you choose.

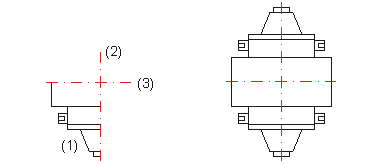

(1) Original part
(2) (3) Mirroring axis

Clone Part (2-D) • Clone and Move (2-D) • Clone and Rotate (2-D)
