Scale

Scale part

2-D Part > Transform > Scale part

You change the size of the active part by specifying a stretching factor, its position by specifying a fitting point pair and the angle of rotation.

1. First specify the fitting point pair for the position.
2. Then enter a stretching factor and an angle of rotation.

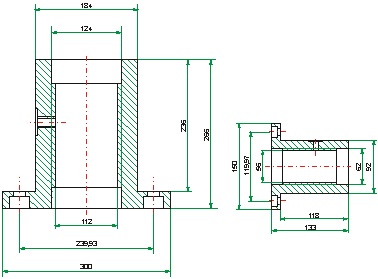

If you change the size of dimensioned parts, the existing dimensioning units are corrected. The size of the dimension figure does not change.

---

Scale part, X-Y

2-D Part > Transform > Scale > Scale part, X-Y

You change the size of the active part by specifying a stretching factor in x- and y-directions, its position by specifying a control point pair and the angle of rotation.

1. Identify two fitting points for the displacement vector.
2. Enter a stretching factor in x- and y-directions.
3. Enter a rotation angle.

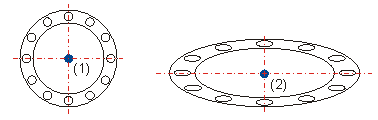

Different stretching factor in x- and y-directions.

---

Scale part, with texts + dimensionings

2-D Part > Transform > Scale > Scale part, with texts + dimensions

This function also scales text size and dimension figure size. You change the size of the active part by specifying a stretching factor, its position by specifying a fitting point pair and the angle of rotation.

---

Scale part, X-Y with texts + dimensionings

2-D Part > Transform > Scale > Scale part, X-Y with text+dimensions

This function also scales text size and dimension figure size. You change the size of the active part by specifying a stretching factor in x- and y-directions, its position by specifying a fitting point pair and the angle of rotation.
