Texts in the Symbol

There are two different ways of assigning text to symbols.

• You assign a fixed text to the symbol. This text, like any other element, is part of the symbol, i.e. it is rotated and stretched with the symbol.
  If a text appears very often in a drawing, it may be advantageous to generate a symbol with a fixed text and to insert this symbol at the corresponding text passages.

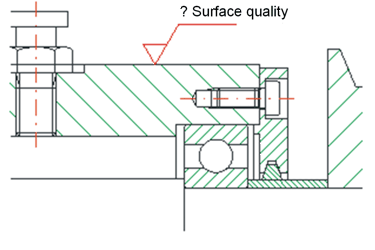

You assign a variable text to the symbol. To do this, in the symbol table you create a text the initial character of which is a ?.
The symbol with the variable text is inserted into the symbol table.

The text is used as a question text when inserting the symbol. The text specified when inserting the symbol replaces the question text defined in the symbol.

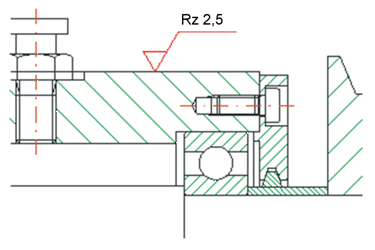

The symbol in the drawing contains the inserted text.

If you press RETURN to apply the question text, it is specified as the actual text. The right mouse button does not insert text.
