Axially Parallel Circle Dimensioning

2-D Dimensioning + Text > Circle > Circle dim. > Axially parallel

You can use this function to carry out axially parallel dimensioning for the diameter of a circle or the radius of a circular arc.

The position of the dimensioning depends on the nearest pole. This pole is selected by means of the position of the last point.

1. Identify the circle or circular arc.
2. Define the position of the dimension line by means of a point.

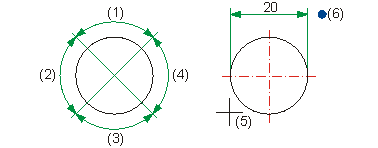

(1), (2), (3), (4) the poles
(5) Identification of the circle
(6) Point for the position of the dimension line
