Slot
2-D Part > CAids > Bore
> Slot, top view
2-D Part > CAids > Bore >Slot, side view
You use these functions to create an individual bore for a slot with a centre cross, which you can insert multiple times into the active part, depending on the function you choose in the top view or in the side view.
- Specify the hole width and the diameter of the individual bore.
- Choose the angle of direction.
- Specify the fitting point on the drawing.
Use the right mouse button to access the function selection again and end the insert operation.

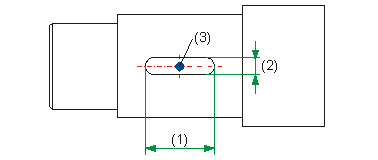

(1) Bore width
(2) Diameter
(3) Angle of direction
To display the slot temporarily in the ICN, right-click
the drawing name in the ICN. In the context menu which opens, choose the
Auxiliary Parts On/Off function.
