Fits Table

2-D Dimensioning +Text > Edit > Extras > Fits table

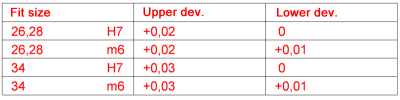

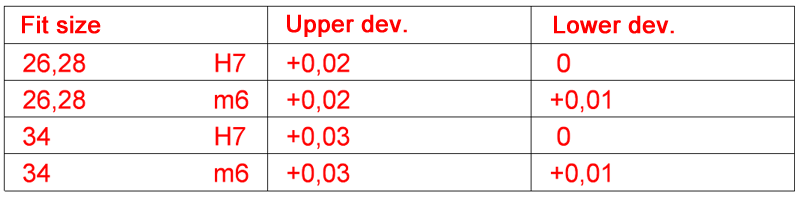

Use this function to create a table with all fits in the current drawing.

1. Specify the position of the table.

Please note:

• If a dimension tolerance is added, changed or deleted in a drawing containing a fits table, HiCAD will ask you immediately after the modification whether you want to update the table.
• To change the settings for fits tables, select 2-D Dimensioning +Text > Edit > Extras > Fits table settings. The ISD default settings for fits can be found and changed in the Configuration Editor at Drawing > Annotations > Fits table. You can, for example, change the column headings for foreign language documents.
• To edit an already existing fits table in a drawing, right-click the table and select the desired function in the context menu.



Function		Description
	Move	The table is attached to the cursor and can be placed anywhere in the drawing.
	Update	Use this function to update fits tables after applying changes to the drawing.
	Edit	Use this function to change the settings of an already existing fits table. When you call the function the Fits table dialogue window dialogue window will be displayed.
	Delete	Deletes the fits table
