Angle Dimensioning, Individual Dimensions on X- or Y-Axis

2-D Dimensioning + Text > Individual dimensions > Variable > Angular dimension via lines, X-axis

2-D Dimensioning + Text > Individual dimensions > Variable > Angular dimension via lines, Y-axis

2-D Dimensioning + Text > Individual dimensions > Variable > Angular dimension via points , X-axis

2-D Dimensioning + Text > Individual dimensions > Variable > Angular dimension via points , Y-axis

Identifying a line and a point determines the position of the dimension arc, horizontal to the x-axis or vertical to the y-axis.

1. Identify the side of the angle.
2. Identify the point for the dimension arc.

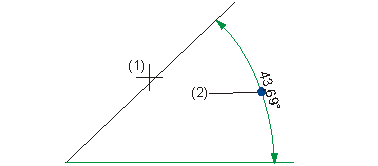

Angular dimension on x-axis
(1) Side
(2) Point for dimension arc

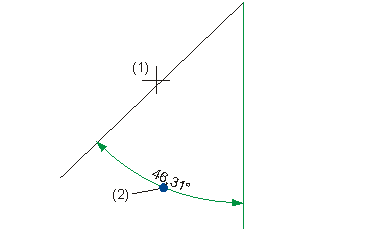

Angular dimension on y-axis
(1) Side
(2) Point for dimension arc

Angle Dimensioning (2-D)
