Angle Dimensioning, Individual Dimensions
2-D Dimensioning + Text > Individual dimensions > Variable
> Angular dimension, via points
This function enables you to generate individual dimensions for an angle.
- Depending on identification type (using points or lines), select two sides or four points that define the sides.
- Define the direction of the dimensioning by entering a further point.

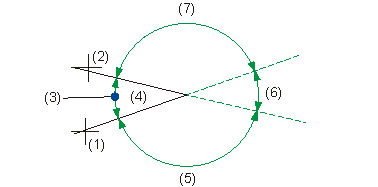

(1) First side
(2) Second side
(3) Direction of the dimensioning
In the case of an angle < 180°, you can dimension the angle (4) formed by the 2 sides as well as the corresponding vertex angle (6) and the two auxiliary angles (5) and (7).
