Insertion Options for Beams and Profiles

Steel Engineering > New > Insert new standard beam

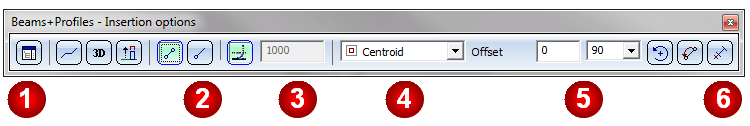

The insertion functions for beams and profiles enable you to choose different insertion options:

1. the beam,
2. the type of insertion,
3. the beam length,
4. the fitting point,
5. the insertion depth,
6. the rotation angle, the mirroring and the alignment in web direction.

If one of the buttons is highlighted in light green colour, the corresponding option is active.

Beams + Profiles - Insertion options
Beam	When inserting standard beams, you can use this option to choose another standard part type before defining the next fitting point.
Fitting point	You use the fitting point to determine the position of a beam in the drawing. The default setting is the centroid of the beam cross-section. More predefined fitting points are available in the list box.    1 Top left, 2 Top axis, 3 Top right 4 Left axis, 5 Centroid, 6 Right axis 7 Bottom left, 8 Bottom axis, 9 Bottom right The fitting point selected is valid for this beam type until you have exited the standard part window.
Offset (insertion depth)	You can move a beam in z-direction by specifying an insertion depth. Insertion is therefore performed parallel to the xy-plane. If you enter a positive value, the beam will lie in front of/above the xy-plane; if you enter a negative value, it will lie behind/under the xy-plane. If the Insert beam in space option is active, the field for the insertion depth will be blocked .
	Insert in active processing plane
	Insert along composite edge. The edges of the composite edge are assigned beams of the selected type.
	Insert in 3-D space
	Insert perpendicular to the current processing plane in z-direction
	Rotates the beam about the beam axis at the specified angle
	The beam is aligned - in relation to a point in web direction to be specified.
	Inverts the ends of the beam, i.e. the beam is mirrored.

Please note:

• You can make subsequent changes to fitting point and insertion depth of the beam that was inserted last, as long as you have not exited the function yet. In other words, if you specify a different fitting point or a different insertion depth immediately after inserting the beam, the position of the previously inserted beam will be adjusted accordingly.
• The functions for the insertion of beams and profiles remain active, so that you can add further beams or profiles if desired. To end the function, press the ESC key or the middle mouse button.
• If you right-click the input fields for distances and angles on the Insertion options menu bar, a context menu opens. For example, you can use the functions of this menu to pick angles or lengths from the existing drawing objects, so that they will subsequently appear in the corresponding input field. Use the Pick distance option to enter a beam length, or the Pick angle option to enter a rotation angle of a beam.
