Elbows
Steel Engineering > CAids > Bolting
> Elbows
To insert an elbow pipe, proceed as follows:
- Define a processing plane parallel to the pipe cross-section.
- Activate the Elbows function.
- Choose the elbow type and the dimensions of the elbow.
- Click OK to exit the selection window.
- Define the fitting position.
The elbow is fitted perpendicular to the processing plane.

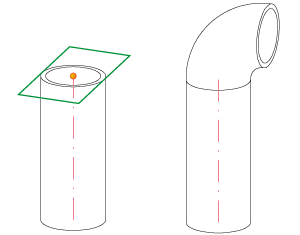

Left: Pipe with processing plane and fitting position, Right: Fitted elbow pipe
