Beam from Sketch
Steel Engineering > New > Beam from sketch
This function derives a beam from a sketch in the drawing.
- Create the corresponding sketch, if required. When drawing the sketch, note that the distance of the sketch from the coordinate system is crucial for the subsequent position of the fitted beam. The beam is fitted at the same distance from the XY-plane as that between the sketch and the origin of the coordinate system. The beam axis is always placed in the coordinate origin.
- Specify a 3-D point for the position of the beam axis.
- The dialogue window for sketch beams will be displayed. Enter the article number for the beam. SKETCH BEAM is proposed as the default setting.
- To assign further data (weight, Commercial weight, Surface area etc.) to the beam, activate the corresponding checkbox. and enter the desired value.
- Select the Material. When the function is called up for the first time in a HiCAD session, S235JRG2 is preset as the material; when the function is called up again, the material selected last is preset.
- If you want the sketch to be deleted after creation of the sketch, activate the corresponding checkbox.
- Close the window with OK.
The fitting dialogue window will then be displayed. It is similar to that for the fitting of standard beams. Choose the desired insertion options, specify the start point and, if applicable, the end point of the beam.

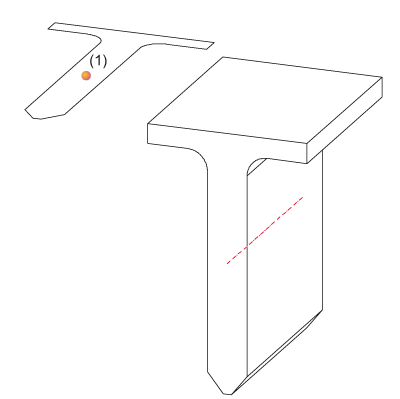

From a sketch (left) derived beam, (1) Point for beam axis

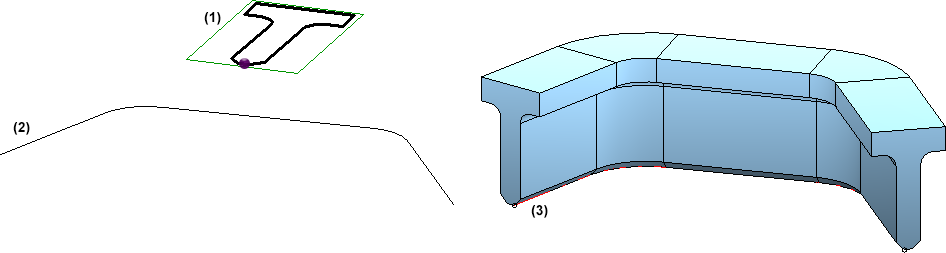

The beam (3) was derived from a sketch (1) and inserted along a c-edge (2)
Please note:
- You can subsequently change the cross-section of a beam derived from a sketch using Feature technology. The sketch is entered into the feature log and can be loaded and processed there.
- The moving of points in a defined rectangle crosswise to the beam axis is also possible for beams derived from sketches (this option is not possible for other beams).
- You can also use the Beam from sketch (3-D SE) function in the context menu of the sketch for the creation of beams. Please note that if the sketch belongs to an assembly, the beam will also be assigned to this assembly.
