Menu Overview

HiCAD presents itself in a modern design, with multifunctional toolbar ("Ribbon") and QuickAccess toolbar. The Ribbon adapts itself dynamically and context-sensitively to the current working situation, thus facilitating the retrieval of the required functions signigficantly.

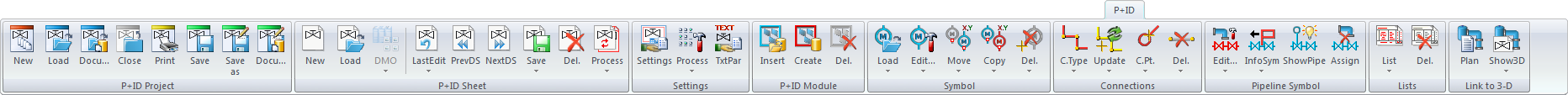

The P+ID functions can be found on the following tabs:

• P+ID,

• P+ID Libraries and

• P+ID Symbol Editor.
