Metal Engineering - What's New?
Service Pack 1 2022 (V 2701)

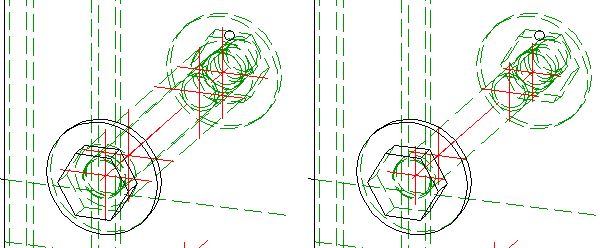

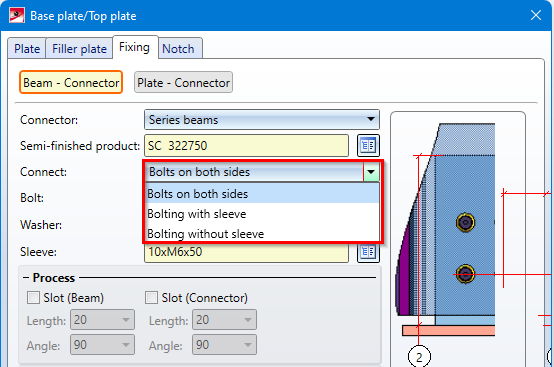

New Fixing option
For boltings without sleeve an extended selection is now available on the Fixing tab of the Base plate / Top plate dialogue window.
Major Release 2022 (V 2700)

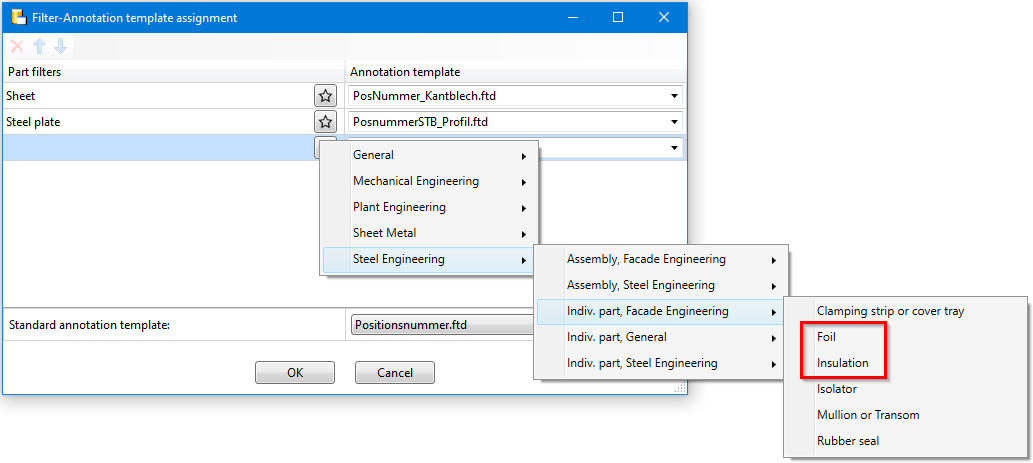

Filter templates for Foil and Insulation for automatic annotations
To use annotation templates for automatic annotation, they must be assigned to parts via a part filter. In the Configuration Editor, select Drawing > Annotations > Automatic annotation and click the
symbol in the empty row. Then you can select the new templates Foil and Insulation via Steel Engineering > Indiv. part, Facade Engineering:

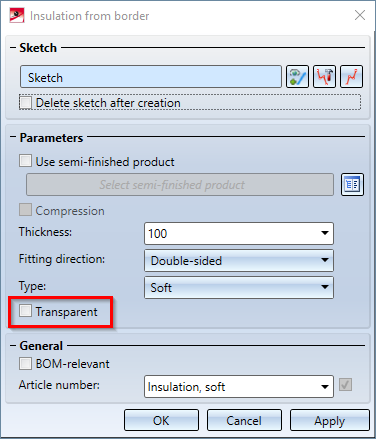

Insertion of transparent insulations
Insulations created with the functions Insulation along sketch, Insulation from cross-section or Insulation from border can now also be created as transparent elements if desired. The Transparent option is available in the dialogue window for this purpose.
