HiCAD GUI Creator - TabControl

With this ToolBox object you insert two tabs in the dialogue.

For each of these tabs a sub-ordinate GUI object of the type TabItem. Further GUI objects can be assigned to each tab, i.e. each TabItem.

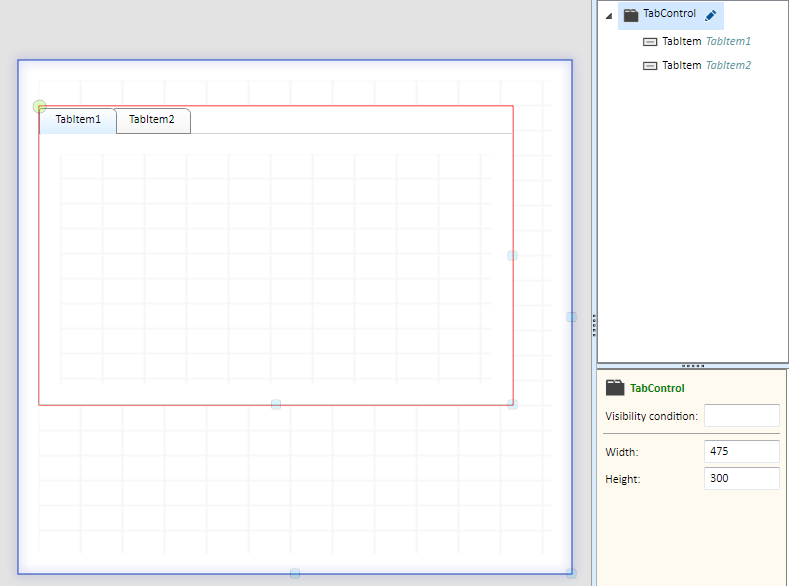

TabControl with 2 TabItems

Parameters
TabControl: Visibility condition Width Height	TabItem: Designation Text format Visibility condition

TabControl:

TabItem:

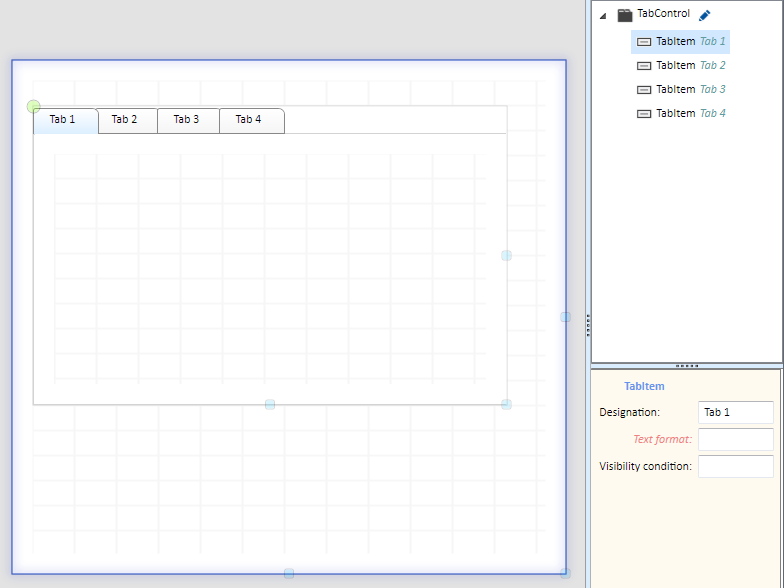

Example

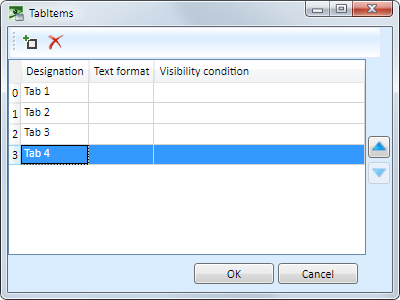

Click on the Editsymbol in the tree structure to add further tabs, rename or delete existing tabs.

To add a new tab, click on the symbol. To delete a tab, click on the symbol.

Use the arrow symbols to change the order of the tabs.

Each new row must be completed by pressing the RETURN key.

Example

Please note:

If you move a GUI object of the type TabControl, all objects belonging to the TabControl will be moved.
If a GUI object of the type TabControl is disconnected, all objects belonging to the TabControl, too, will be disconnected.
