HiCAD GUI Creator - Image

With this object you can insert an image in the dialogue. If the AutoScale checkbox is active, the image will be adjusted proportionally to the size of the image object.

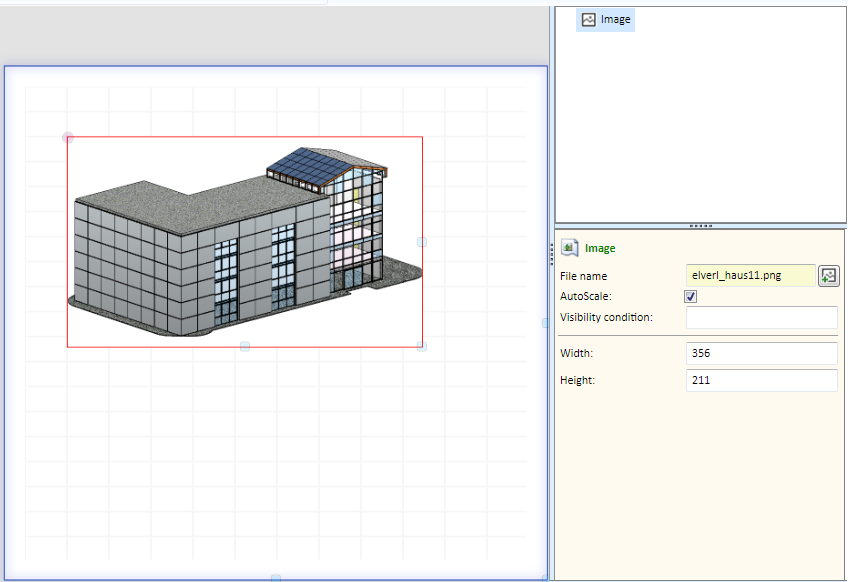

Example



Parameters

  • File name
  • AutoScale
  • Visibility condition
  • Width
  • Height
