Particularities

Particularities occur with some functions when working with the feature log. These are described here.


Point numbers at isolated points

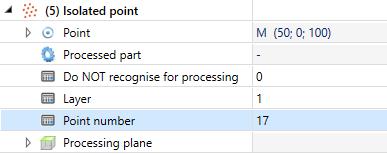

When creating an isolated point with a point number, the Point number attribute of the Isolated point feature is set instead of creating a separate log entry for it

This is also handled accordingly by the Delete point number functions, so that they now empty the Point number attribute. This has the consequence that the deletion of point numbers remains even after a feature recalculation.

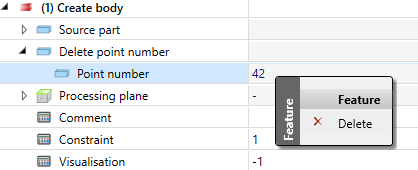

Special cases here are parts whose feature log was activated when points and point numbers were already created. If you delete point numbers in this situation, they will be entered as a separate Delete point designation entry at the Create body feature. Here you can delete individual deleted point numbers via the Delete context menu functions or delete the entire list via the Clear function, whereby the point numbers are restored at the latest with the next feature recalculation.
