ALUCOBOND ® riveted

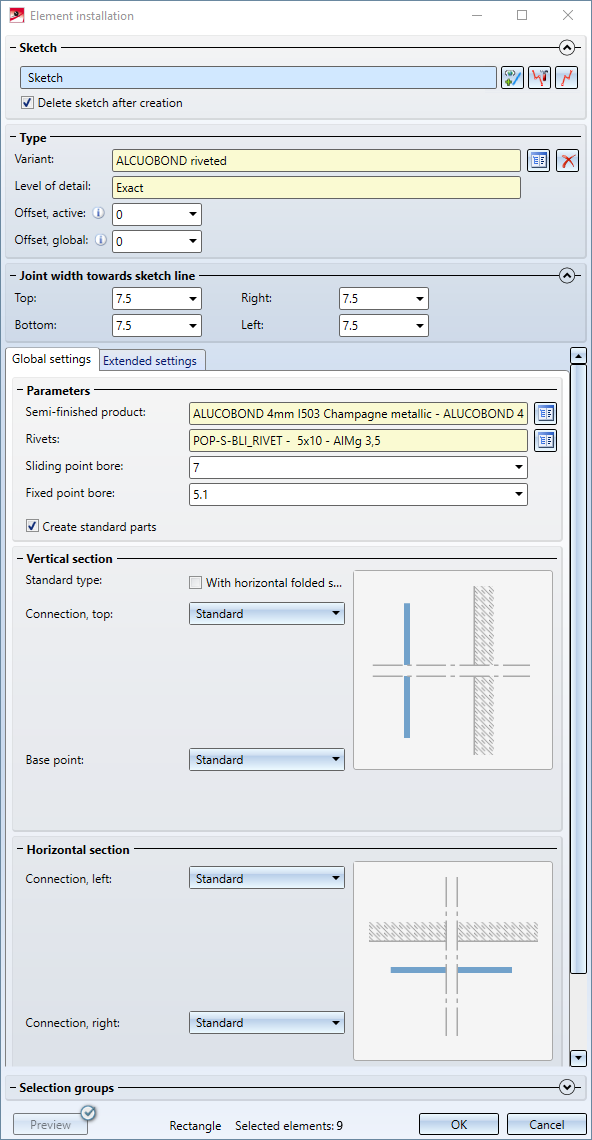

ALUCOBOND riveted - Basic settings
Here you select the desired semi-finished product and the rivet as well as the parameters for Connection, top, Base point, Connection, left and Connection, right. Furthermore, you can choose here whether standard parts (for fastening) should be installed or not. The ISD default setting is that standard parts are created, i.e. the checkbox is active. If the checkbox is inactive, the standard parts are not listed in the bill of materials.
The Attic connection can also be installed without the last flange by entering the value 0 for Length of folded sheet.
If you enter a negative value for Length of folded sheet for the Attic or the Window connection, the folding will be generated in the other direction ("upwards" or "downwards").

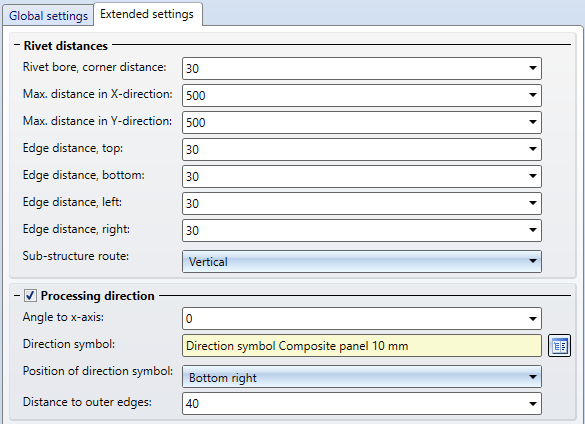

ALUCOBOND riveted - Extended settings
The processings on the tray panels will be created through the mounting to the sub-structure.
ALUCOBOND ® bonded

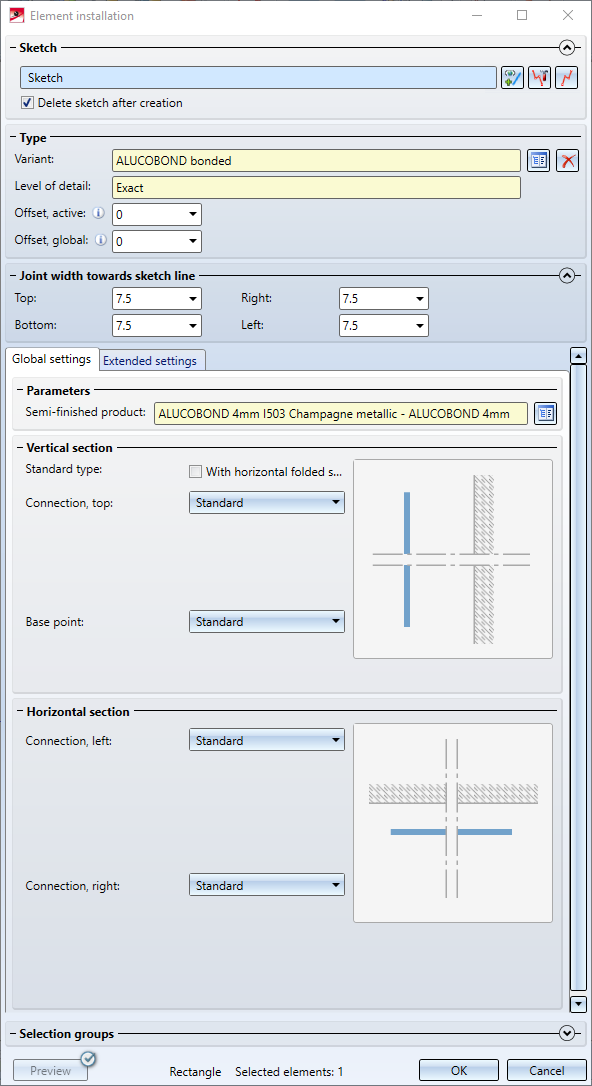

ALUCOBOND bonded - Basic settings
The Attic connection can also be installed without the last flange by entering the value 0 for Length of folded sheet.
If you enter a negative value for Length of folded sheet for the Attic or the Window connection, the folding will be generated in the other direction ("upwards" or "downwards").

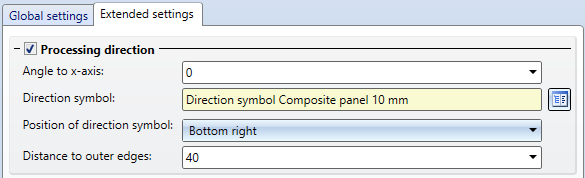

ALUCOBOND bonded - Extended settings
