Parametric Dimensions - Default Settings
The basic settings for parametric dimensions are determined in the Configuration Editor under System settings > Annotations > Dimensioning, 3-D > Parametric dimensions.

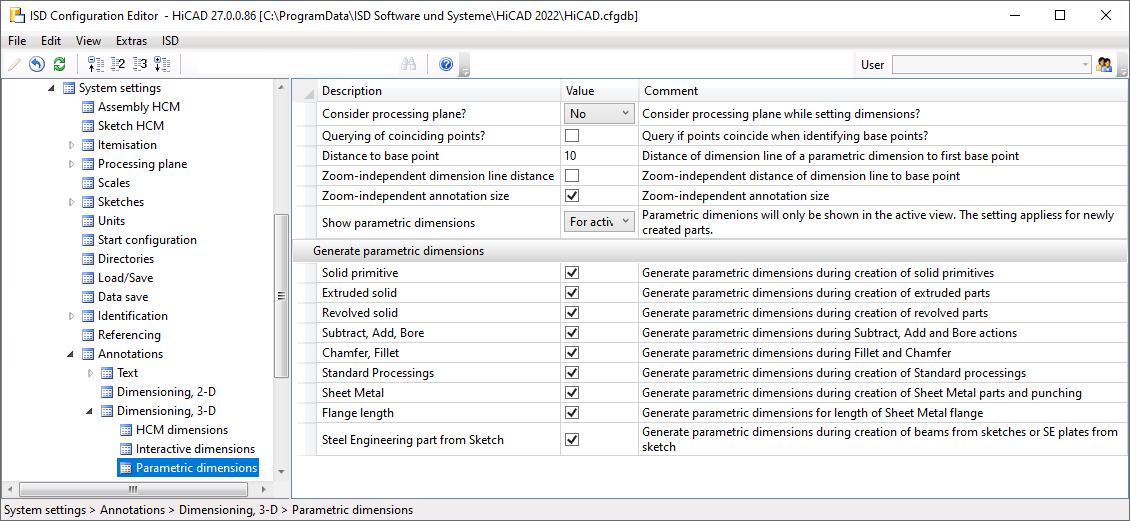

The figure shows the ISD-side default settings.
Please note that changes to the settings do not take effect until
you next start HiCAD.
