Insert Surface Symbols

Surface symbol, new

Use this function to insert surface symbols into your drawing. A surface symbol is composed of several unioned 2-D graphical elements.

Select the desired symbol from the symbol table and specify its insertion position in the drawing.

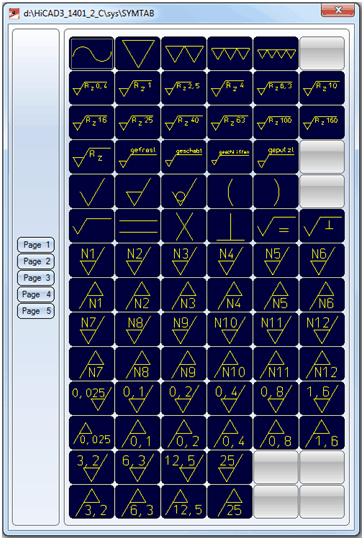

Example of a symbol table

Please also read the information given in the topic Define Symbols and Insert them into Symbol Table.

Delete symbols, Individual

Deletes individual symbols by identification.

Delete symbols, All

Deletes all symbols of the active part.
