Project: HiCAD 2-D

Fillet via Internal Corner (2-D)

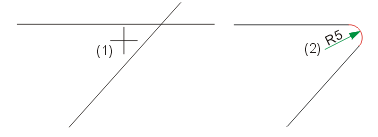

(1) Cursor position when selecting the corner
(2) Fillet radius
