Tangent Point-Circle (2-D)

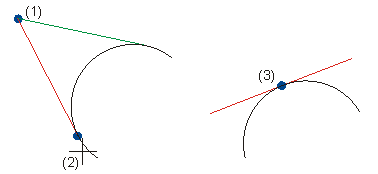

(1) Start point of the tangent
(2) Selection of the circle
(3) Start point of the tangent lies on the circle.
Project: HiCAD 2-D
(1) Start point of the tangent
(2) Selection of the circle
(3) Start point of the tangent lies on the circle.
