Project: HiCAD 2-D

Hexagon (2-D)

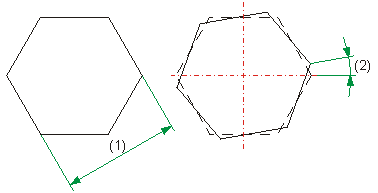

(1) Width across flats
(2) Angle of rotation

Drawing a hexagon with width across flats and angle of rotation
