Project: HiCAD 2-D

Half-Section Diameter Dimensions (2-D)

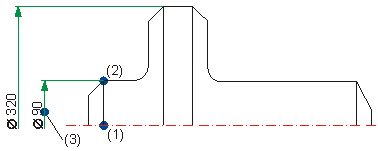

(1) Symmetry line
(2) End of the line to be dimensioned
(3) Position of the dimension figure
