Interrupt Projection Line
2-D Dimensioning + Text > Edit > Dim.line
>Projection lines, Interrupt
This function enables you to interrupt intersecting projection lines.
- Use the dimension figure to identify the dimension.
- Identify the projection line at the position where you want to place the interruption.
The interruption is applied evenly in both directions from the identified
point. You can change the width of the interruption via the Configuration Editor (ISDConfigEditor.exe ... > Drawing > Annotations > Dimensioning, 2-D > Width of interruptions for projection lines),
or via
> Settings.
Several interruptions can be performed consecutively on both dimension lines.

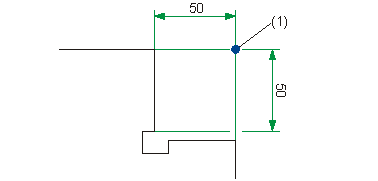

(1) Identification of the projection line
