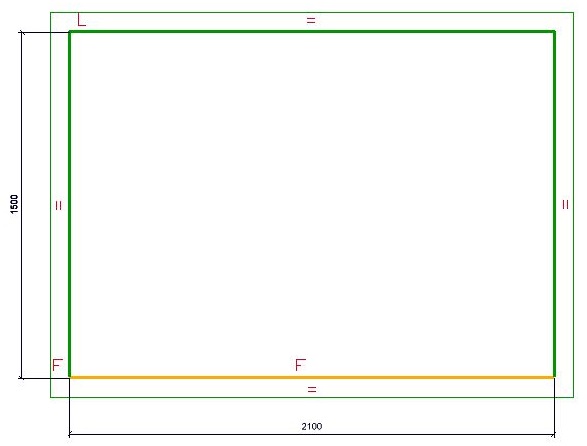

to create a glass element or a facade in a sketch, you need to select a sketch first and then select the corresponding insert in LogiKal. When you choose Metal Engineering > New > Sketch to create a glass element or a facade in a sketch, you need to select a sketch first and then select the corresponding insert in LogiKal.

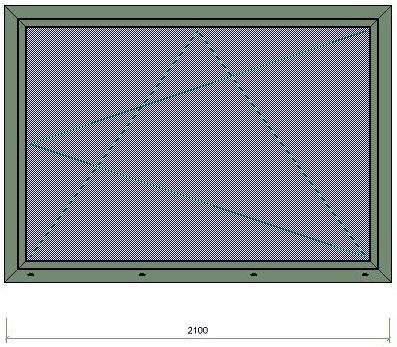

In this example a window was created in the sketch.
In the feature log, an entry Logikal with the sub-entry Sketch was created for the item from the sketch.
After a double-click on Sketch, it will made visible in the drawing (even if it was deleted during insertion) and can now be modiffied subsequently (e.g. you can change its width).
In the Process sketch dialogue window which remains open during processing, confirm the processing by clicking Apply sketch. Then, the LogiKal dialogue will open, allowing you to confirm the new dimensions of the item. After confirming, the window will have the size of the changed sketch in HiCAD.
