Clean Up Intersections (3-D SM)

Sheet Metal > Process > Extras > Clean up intersections

You use this function to subtract the intersecting part from the sheet part.

1. Specify the clearance between intersecting part and the sheet part.
2. Then, identify the intersecting part (collision body).
3. Now identify the sheets that are intersected.
4. Use the middle mouse button to end the identification.

The calculation/subtraction is started.

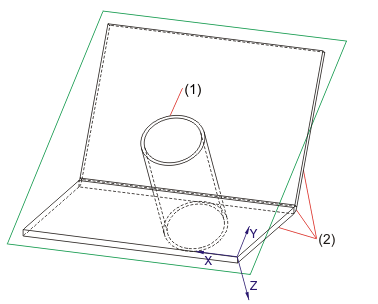

(1) Collision body
(2) Base sheet, bend zone and flange are intersected

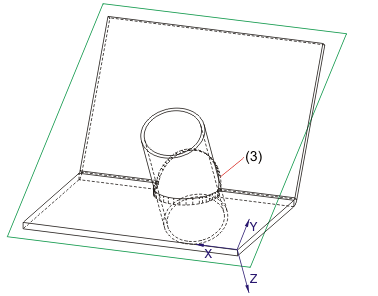

(4) Cut-out in the sheet part

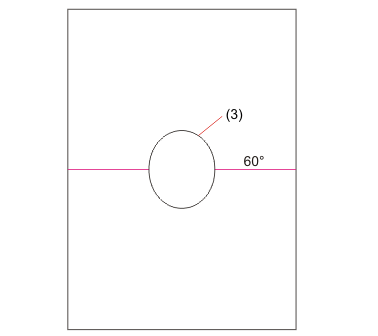

(5) Cut-out in the development
