Sheet Metal > Process corner > Close corner, with circular cut-out
Use this function to close the open corners that are created when adding flanges to a sheet. A circular cut-out in the bend zone will be created automatically.
The corner is then closed.

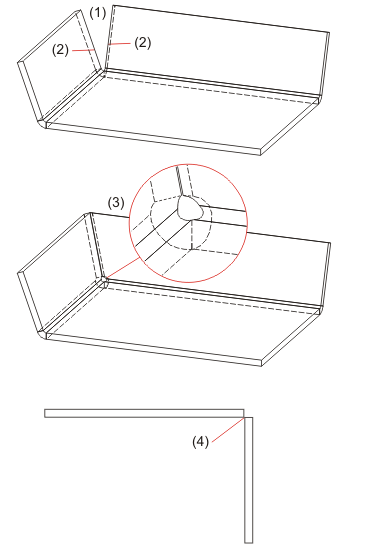

(1) Open edge
(2) Abutting edge
(3) Closed corner with cut-out
(4) Top view of the closed corner
