Close 2 Bend Zones (3-D SM)

Sheet Metal > Process > Close 2 bend zones (drainage area)

The bend zone is a separate part in the part structure and therefore needs to be handled individually. To close the bend zone, choose this function.

1. Identify the bend zone at the front edge of the cut surface.
2. Identify the second bend zone at the front edge of the cut surface.

The bend zones are linked to one another as drainage areas.

It is important here that you should identify the two bend zones at approximately the same height.

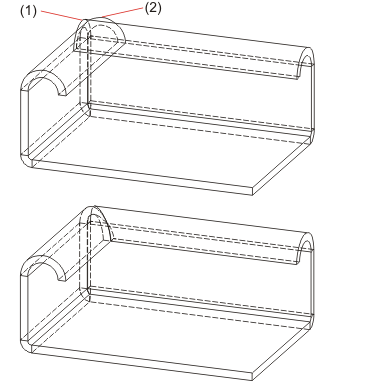

(1) First bend zone
(2) Second bend zone

 Related Topics

Sheet Processing Functions • Close Corner, With Drainage Area
