Mitre, without Lengthening (3-D SM)

Sheet Metal > Mitre > Without lengthening

This function requires the flanges to overlap and have the same length. The flanges must be located in one plane.

Of each flange, identify one edge of the longitudinal side or, via right-click, the front side.

A mitre will then be inserted. You can now mitre cut more flanges or press the middle button to end the function.

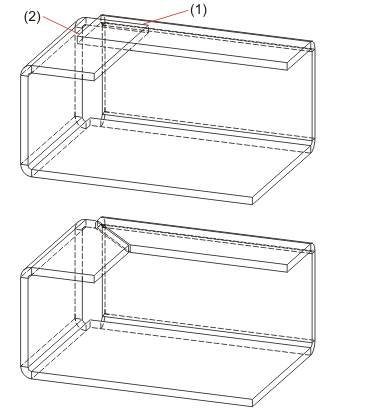

(1) First front side
(2) Second front side
