Close Internal Corner (3-D SM)

Sheet Metal > Process corner > Free

Sheet Metal > Process corner > Closed

The Close cornerfunction lengthens or shortens, as applicable, the sheets up to the common intersection point of the internal edge. If you have chosen the Close corner, bend zone closed function, the bend zone is also closed.

1. Identify the front edges of both sheets.

The corner is then closed.

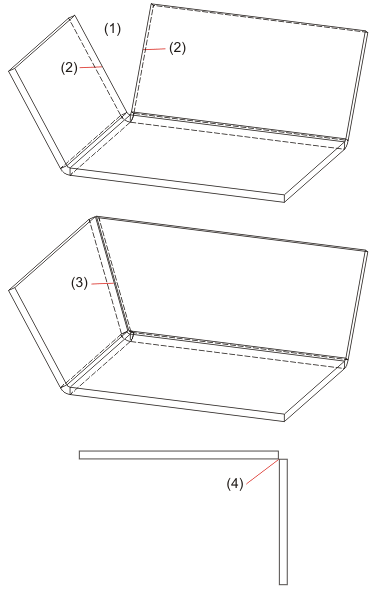

(1) Open corner
(2) Front edge
(3) Closed corner
(4) Top view of the closed corner
