Close Corner, Outer Edges Flush (3-D SM)

Sheet Metal > Process corner > Closed > Outer edge, flush

Select Process corner > Closed > Outer edge, flush to lengthen each sheet to the outer edge of the other sheet. This also applies to the bend zone.

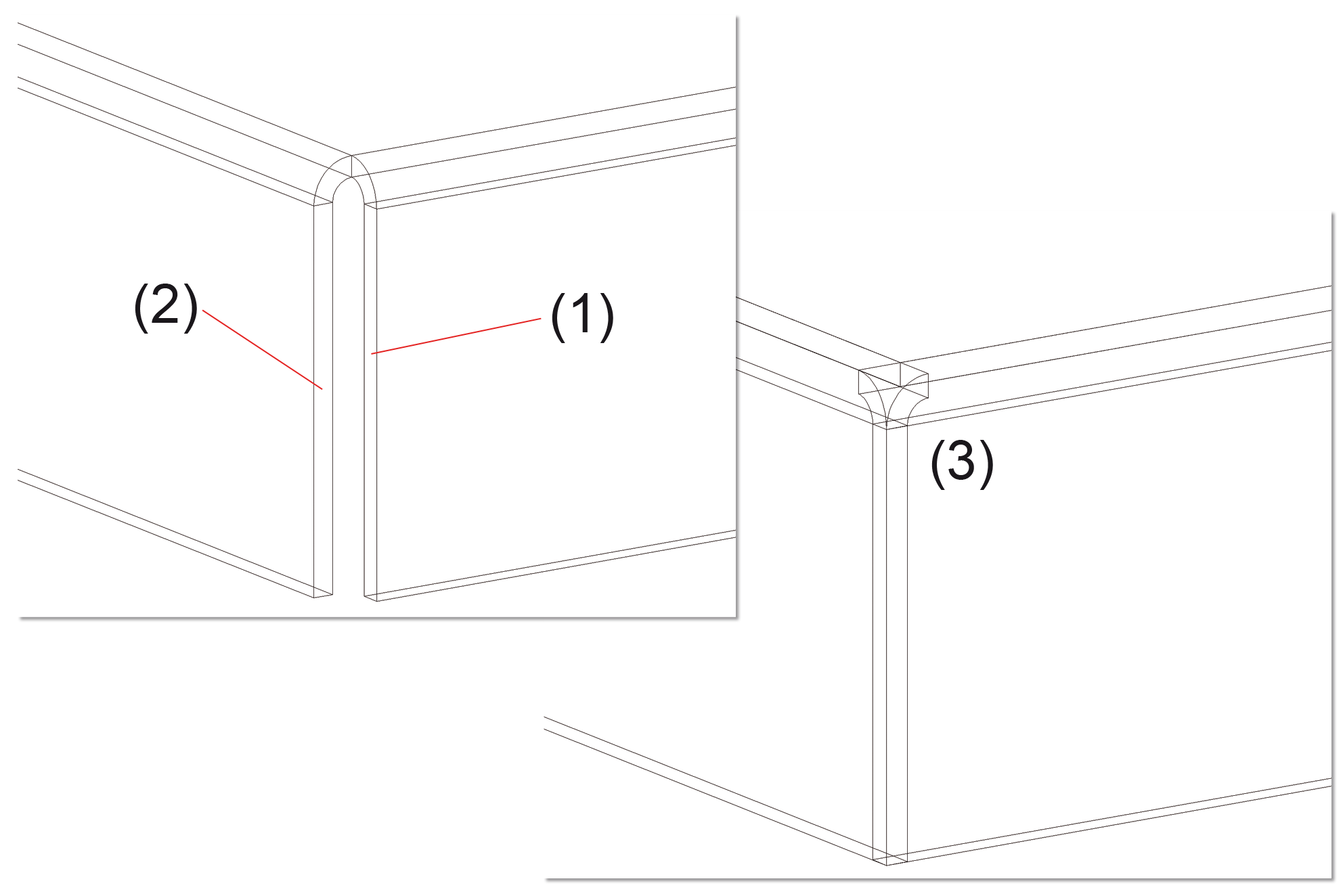

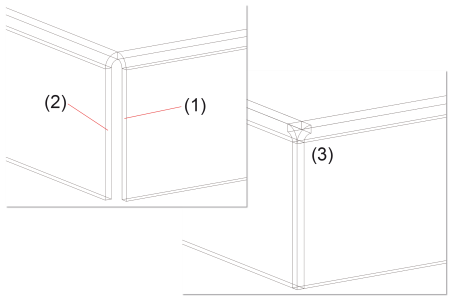

  1. Identify the front edges of both sheets:

(1) Front edge
(2) Front edge
(3) Lengthened to outer edges of sheets (or shortened, if required)
