Form Assembly from Existing Parts

Assemblies can also been formed using existing 3-D parts and assemblies.

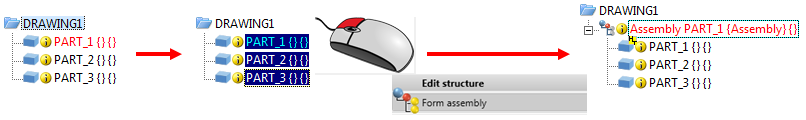

Right-click the desired part/assembly in the ICN or in the drawing.

A multiple selection of parts/assemblies is also possible: Left-click the desired parts one by one while holding down the CTRL key, then right-click a part/the assembly in your selection to open the context menu for 3-D part.

Select Form assembly (at Edit structure or Part/Assembly structure).

Please note:

If the function is applied to 3-D parts (solid primitives, beams...), all selected parts will be subordinated to new assembly. The part that you right-clicked will be the assembly main part.
If the function is applied to dummy parts or 3-D sketches, (with sketch geometry) the part that you right-clicked will be converted to an assembly and the following will happen:
All other selected parts (if any) will be subordinated to this new assembly.
The sketch geometry will be contained in the assembly
Planar sketches are handled like 3-D parts (i.e. they will be subordinated and not converted!)

If the function is applied to a multiple selection (part list) that contains assemblies, the following will happen:
If the selection consists only of assemblies, the newly formed assembly will have no assembly main part.
If the selection consists of assemblies and other 3-D parts, the part that you right-clicked (or the first found 3-D part of the selection) will be made the new assembly main part

The assembly type Assembly will be automatically assigned here.
