Adjustment for Part Type 'Gauge Part' (PE)

The old part type Gauge (Part type ID: 9800001) needs to be replaced with the new part type Gauge part (Part type ID: 5920010; Mask: sml_msrbtl.

If this has not happened yet, proceed as follows:

• The new part type with the ID 5920010 was automatically entered in the database by DbPlantDataImport.exe.
• In the HELiOS Desktop, perform a part search with the Classification Gauge (not "Gauge part"!).
• If this class does not exist, no further action will be required.

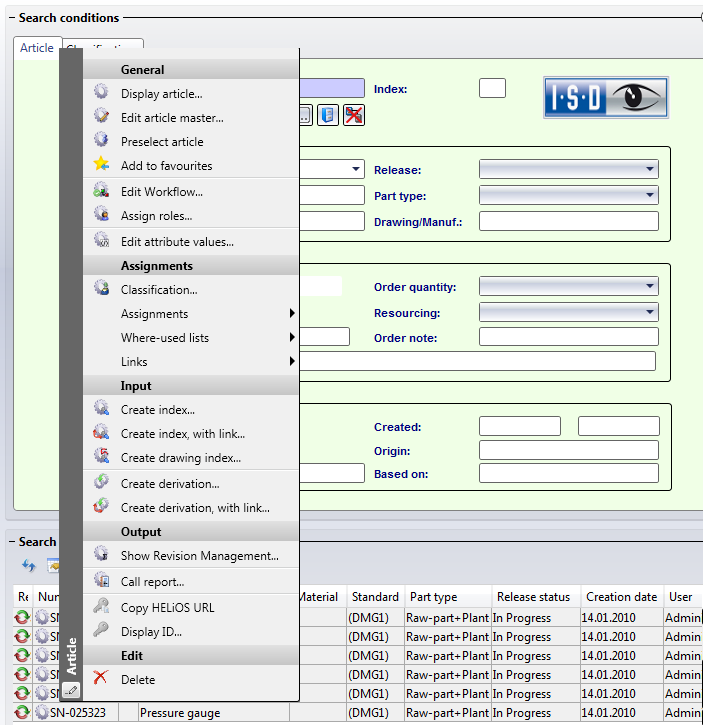

• If the class exists, mark all rows of the result list. Right-click to open the context menu, and select Classification.


  Result list (Example)

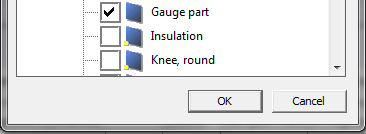

• In the Classification tree structure tree, activate the new class Gauge part:





When you now click OK, all article masters belonging to the selected parts will be assigned the new class.

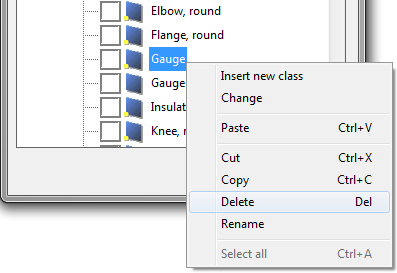

• Delete the now obsolete class Gauge after verifying that no parts are assigned to it any more:
