Isometry and Pipe Spool Drawing Functions for Separate Drawings (Iso)

Isometry + Pipe spool drawing

The available isometry and pipe spool drawing functions differ for isometries and pipe spool drawings in sheet areas of a layout plans, and separate isometry and pipe spool drawings:

The functions for isometries and pipe spool drawings in sheet areas of a layout plans can be found in the Isometry / Pipe Spool Drawing function group of the Plant Engineering tab.

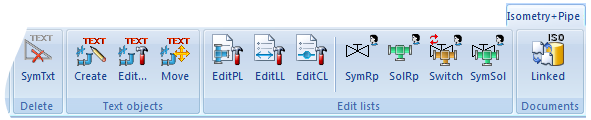

The functions for separate isometry and pipe spool drawings can be found on the Isometry + Pipe spool drawing tab:

This tab consists of the following function groups:

Create	Re-generate active isometry/pipe spool drawing
Settings	Presettings for isometry / pipe spool drawing Display/Change connection information Specify/Cancel the spreading of isometries over several sheets
Finishing	Add/Remove isometry or pipe spool drawing elements Update the isometry / pipe spool drawing Exchange item numbers
Symbols	Set/Remove insulation symbols Set/Delete downgrade symbols Edit flow directions within pipeline strings Check plausibility of flow directions
Delete	Delete down-grade symbols
Text objects	Edit text objects assigned to an isometry / pipe spool drawing Create user-defined text objects
Edit lists	Edit lists Change representation
Documents	Show the layout plan belonging to an isometry / pipe spool drawing

Please note:

Depending on whether an isometry or pipe spool drawing file is active, unnecessary functions will be greyed out. Only the functions which are actually relevant for the isometry or the pipe spool drawing will be active.
The Isometry + Pipe spool drawing tab will automatically be active when an isometry or pipe spool drawing file is loaded.
