Settings - Pipe Shortening (PE/Iso)

Plant Engineering > Isometry / Pipe Spool Drawing > Isometry settings

Plant Engineering > Isometry / Pipe Spool Drawing > Pipe spool drawing settings

Isometry+Pipe Spool Drawing > Settings

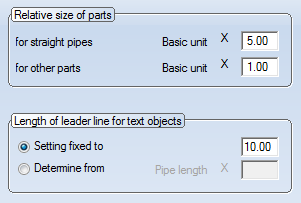

The Pipe shortening tab enables you to specify

• the relative sizes of parts and
• the lengths of leader lines from text objects.

These settings will be considered for the Pipe shortening function.

This description also applies to pipe spool drawings.
