> Divide... 3-D Standard > Tools > Edge > Divide...
|
|
Divide edge, via point The edge is divided by specifying division points. Identify the edge and specify the division point. |
|
|
|
Divide edge, via number of segments This function enables you to divide edges into several segments. Identify the edge and specify the number of segments. |
|
Notes:

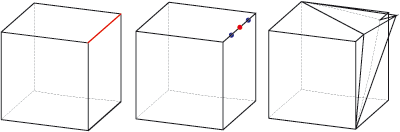

Left: Identified edge - Centre: Edge divided into 4 parts - Right: Moving the middle division point -> Triangulation of the part
Related Topics
Further Edge Functions (3-D) • Edge Functions (3-D) • Move, Points (3-D)
|
