Change Standard Parts and Boltings (3-D)

3-D Standard > Standard Parts > Bolting > Change...

The following functions are available for subsequent changes of already fitted standard parts and boltings:

	Process bolting	Replaces standard parts.

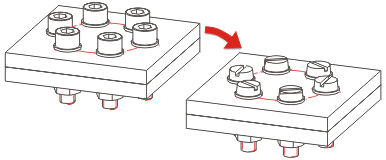

	Position/Grid	Changes fitting position, reference point, fitting direction and grid arrangement.
	Representation	Changes the representation of standard parts.
	Update	Restores the original state after applying changes.
	Delete	Deletes standard parts.

Please note:

The context menu for boltings (RMB) contains the Break up bores function, which enables you to remove the link between holes and boltings. In case of any subsequent changes to the bolting, you will then need to adjust the holes manually!
Alternatively, you can access the processing functions via the context menu for standard parts (right mouse button).

Process bolting

3-D Standard > Standard Parts > Bolting > Change, Process

You use this function to replace fitted standard parts, components of a bolting or standard processing by relevant objects of another type or another size.

Identify an edge of the standard part or the standard processing.
HiCAD displays a corresponding dialogue window for standard parts, standard processes or boltings. Select the replacement object or the new size.
Click OK to exit the dialogue window.

Position/Grid

3-D Standard > Standard Parts > Bolting > Change, Position/Grid

You use this function to change the fitting position of standard parts, standard processings and boltings as well as the arrangement of standard part images that have been fitted on a grid.

Identify an edge of the standard part or the bolting.
The Grid menu opens. Choose the grid you want and, if required, enter the number of objects as well as the necessary distances/angles. Operation is similar to a new fitting.
If you want to change the fitting position, the fitting direction or the reference point, use the right mouse button to activate the context menu before fitting
Make the changes you want by selecting the relevant function.
Specify the fitting position.

Representation

3-D Standard > Standard Parts > Bolting > Change, Representation

This function enables you to make subsequent changes to the representation of existing standard parts, standard processings and boltings.

Geometry
You can show/hide holes, standard parts, axes and threads here by activating/deactivating the checkboxes.

Detailing

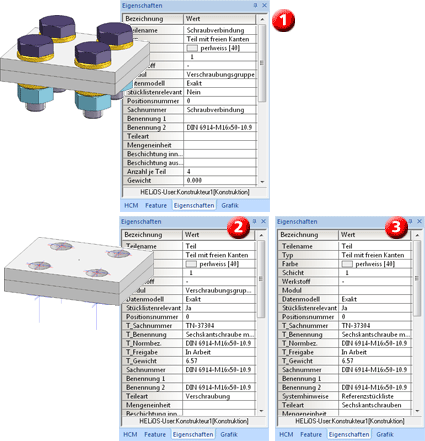

If Exact is chosen, the bolt heads are represented in detail. Especially for large drawings containing very many boltings it often makes sense to use the Compressed (2) representation to increase the performance of the program. If you want boltings in compressed representation to be considered for identical part search, BOM creation, or product structure transfer to HELiOS, select the Ref. BOM (3) representation.

Production
This setting is only relevant for steel engineering. First choose Show axes and then the option for production.
Options
By activating the relevant radio button, you can define whether you want the change to apply to individual boltings, to all boltings of an active part, or to all boltings of the drawing.

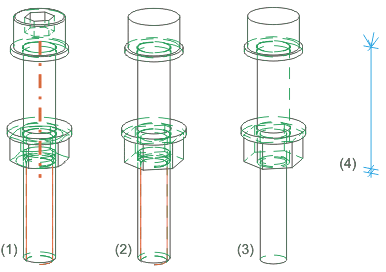

(1) Detailed representation on, (2) Detailed representation off, with thread without axis, (3) Detailed representation off, without thread and axis, (4) Only axis

Update bolting

3-D Standard > Standard Parts > Bolting > Change, Update

This function enables you to update standard parts etc. after carrying out changes that you want to undo again. The standard part is then re-adjusted to the original situation during fitting. The function can be used either for individual objects or all objects of the active part or the drawing.

Delete

3-D Standard > Standard Parts > Bolting > Change, Delete

You use this function to delete standard parts, standard processings and boltings. Simply identify an edge of the desired object.

If you delete boltings in the ICN or via the Delete objects function on the Drawing tab, the holes will be retained!
