Examples: Connect Cross-Sections (3-D FFS)

3-D FFS > From c-edges > Connect cross-sections

• Example 1: Planar surfaces with/without connection constraints
• Example 2: Circular cross-sections with connection constraints

Example 1:

The displayed model was created by placing 1 cross-section on 2 guidelines. These cross-sections were connected with each other by means of interpolation.

Example 2:

Here, 3 circular cross-sections were connected with each other. The following connection constraints were defined:

1. Connection constraints at start and end: Perpendicular to cross-section
2. Process tangents (automatic)

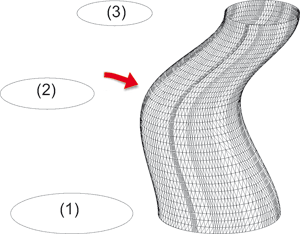

(1) Start cross-section, (2) Intermediate cross-section, (3) End cross-section
