Motion Simulation: Translation Motor with Time Intervals (Forwards/Backwards) (3-D)

Continue with the previous example with the translation motor. Box1 is now to be moved back to its original position in the video. At the same time, Box2 is to be moved upwards (to prevent a collision with Box1) and then also back to its original position. Proceed as follows:

• Deactivate the collision check.
• Mode: Motion simulation.
• Define a new translation motor. The part to be moved is Box1. The direction is the same as for the first motor, but the velocity is -10 mm/s.
• Define a new translation motor. Part to be moved: Box2. Direction: Bottom edge of box. Velocity: 10 mm/s.

• Define a new translation motor. part to be moved: Box2. Direction: Bottom edge of box. Velocity: -10 mm/s.
• Maximum simulation time: 20 s

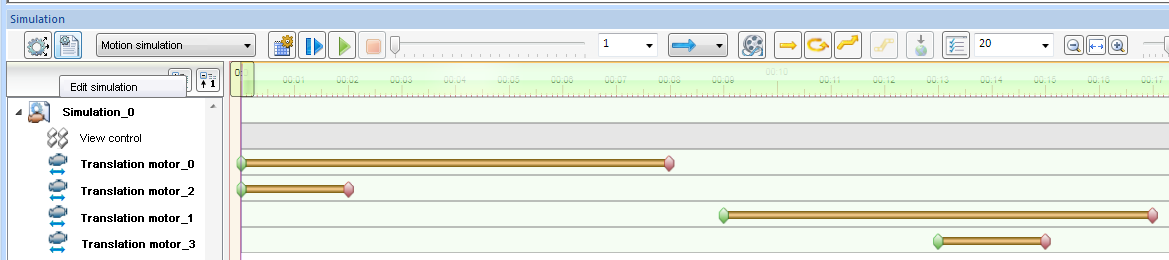

• Time intervals as shown below

• Calculate the simulation.

Video of the simulation

Download sim_bsp4.mp4
