Insert Texts (3-D)

3-D Dimensioning + Text > Text > New text

The Text dialogue window is displayed to enable you to enter 3-D texts. The following input areas and functions are available:

Text formatting
Insert texts
Further properties
Background and Zoom functions

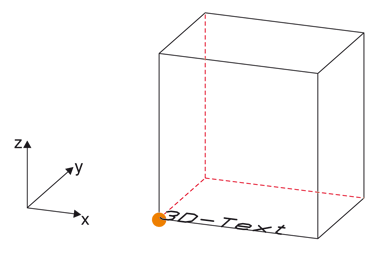

If you have defined the text and its parameters, click OK to insert the text into the drawing. Then specify the position of the text. The texts are placed in the x-y plane of the active coordinate system, namely parallel to the x-axis.

Please note:

When HiCAD prompts you to specify the text reference point, you can use the RMB to switch to the Text Editor again or cancel the function with the middle mouse button (scroll wheel).
3-D texts are always assigned to the active part.

If you insert new texts into the drawing, the fields are predefined with the values that were last specified during the current HiCAD session or the settings selected using the Text parameter settings function.
Once you restart HiCAD, the default settings specified in TXTPAR.DAT are used.
You can also make manual entries in the combo boxes for the font size, line spacing and width factor. In addition , you can also expand the values shown in the boxes. To do this, you need to add new lines to the corresponding sections in the TXTPAR.DAT file.
To modify an existing text, click the arrow below the icon and select the desired function. Alternatively, you can right-click a text and select the required function from the context menu. Or you can double-click a text to activate the Text Editor.
Texts which are located on layer 0 need to be visualised (via Drawing > Others > Visualisation) before a processing can take place.

Text formatting

Use the upper toolbar of the Text Editor to specify the following text properties:

Layer,
Character set,
Font,
Font size,
Text colour,
the aspect ratio and inclination of text.

HiCAD makes all installed Windows font types as well as special HiCAD fonts available for selection. The HiCAD fonts are non-proportional and particularly suitable for tabular texts. The representation of the characters in the specified text size is independent of the scale of the drawing. The font size in the default text font refers to upper-case letters. The character set determines which fonts will be offered for selection, e.g. if you choose "Chinese", only fonts that support Chinese characters can be selected from the list box.

Each text can be placed in one of 1,000 layers. Layer 0 contains texts that are not displayed on the drawing. These are special texts that are only used to specify non-graphic attributes for parts, e.g. article data. The text layers are identical to the layers of the other elements and are not managed separately. The layer number is taken into account as an attribute during selection of active attributes.

The Aspect Ratio/Inclination field specifies the font style and the text inclination. If the aspect ratio is less than 1, the text is compressed. Similarly, if the aspect ratio is greater than 1, the text is stretched. If the inclination is 0.00 degrees, the text is displayed in normal style; if the inclination is 15.00 degrees, the text will be shown it italics

Insert texts

Use this toolbar to load text from a file, paste texts from the clipboard or copy them to the clipboard.

Load text from file
Use this function to load texts existing in particular files. Possible are:

Text files (*.rtf, *.txt, *.dat),
Formatted text (*.rtf),
Comma-separated values text files (*.csv).

If you load texts from formatted RTF files, you can either take over the font of the original text, or use a font of the Text Editor. Here, even various formattings within a line will be supported, except for subscripted and superscripted text. In HiCAD, text height and colour have another meaning than in text processing programs and will therefore not be taken over. Please also note that for 3-D texts only the first line of the file will be taken over.

No formattings will be taken over from CSV files. If you copy and paste them from Excel, fonts will be considered as well.
Save text
Use this function to save texts for a later re-use -either as text file (.TXT, .DAT) or as comma-separated CSV file.
Paste text from clipboard
Use this function to insert the contents of the clipboard. If the clipboard contains a text which has been previously copied to it with the Text Editor, the complete HiCAD text formatting (colour, font, text height, italic, bold, line spacing etc.) will be taken over. When inserting texts from other Windows applications, you can either take over the font of the original text, or use a font of the Text Editor. Colour and text height will not be taken over.
Copy text to clipboard
This function copies the currently selected text to the clipboard. When copying texts from the clipboard to other Windows applications, HiCAD fonts are copied as Courier fonts.

Already used tetxs and special characters can simply be taken from the corresponding list box: Select the required text and click the icon.

The area under the toolbar is used for direct text entry. Simply place the cursor in the area and enter the text.

Other properties

Insertion point
The text can be placed in nine different positions relative to its reference point. You choose the desired position by activating the relevant radio button.
Weight
Determines whether the text is displayed in bold and, if so, the weight of the bold text.

Background and Zoom functions

These buttons enable you to switch the background of the text input area temporarily. This can be useful, for example, if the selected font colour is hard to see in combination with the current background.

The zoom functions enable you to enlarge or downsize the text displayed in the input window.
