Delete surface, individual
3-D Standard > Tools > Surface > Surfaces, Further... >
Delete surface, individual
You use this function to delete individual surfaces. Select the surfaces you want to delete from the surface selection menu.
When you delete surfaces inconsiderately, you risk destroying
the body!

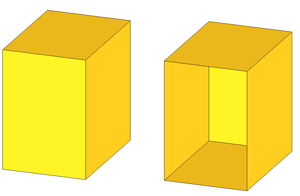

Left: Original solid; Right: Result after deleting the front surface (part with free edges)
