Sketch > New > Convert 2-D part to sketch
Use this function to copy 2-D graphical elements into the active sketch.
Proceed as follows:
Identify the 2-D part. The part will be projected onto the active processing plane and entered into the 3-D part structure as a sketch with the name of the 2-D part. If no processing plane is active, the XY-plane of the active coordinate system will be used.

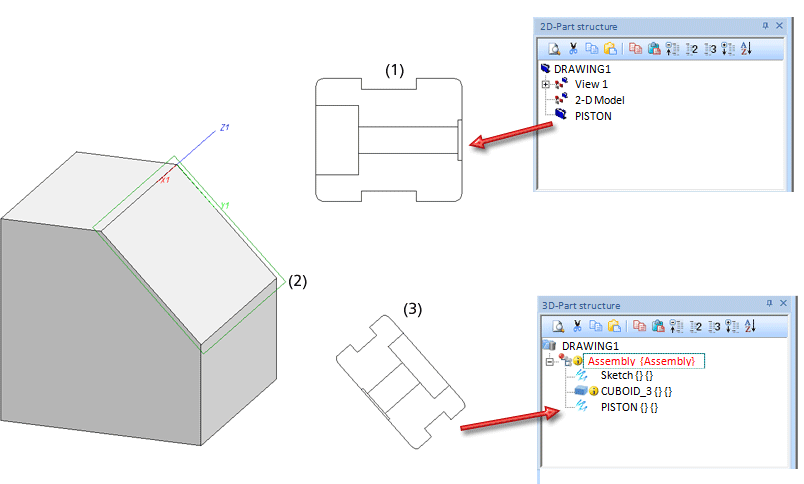

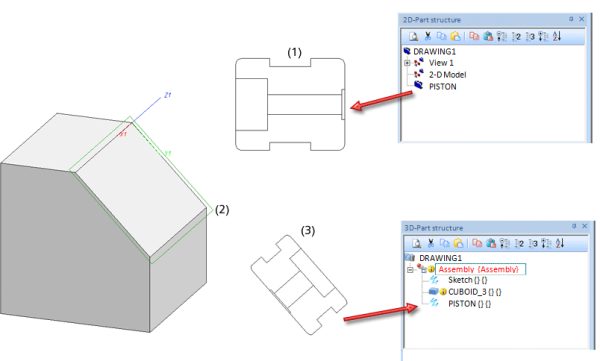

(1) 2-D part, (2) Active processing plane, (3) Created sketch
General 2-D splines that are, e.g., created during 2-D DXF import will also be considered and converted correctly.
