Motion Simulation: Polyline Motor (3-D)

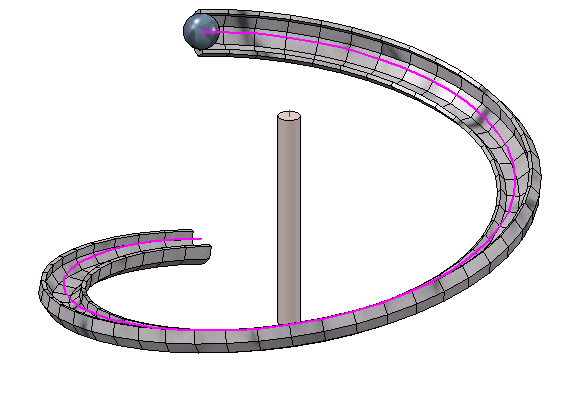

In this example, a ball is to be moved along the pink curve shown above. Proceed as follows:

• Select New simulation .
• Right-click the View control symbol and select Deactivate.
• Select the Polyline motor function. The part to be moved is the ball, the polyline is the highlighted curve. Direction of the movement is the direction of the polyline. Motion type: Rotate, with polyline, Velocity: 60 mm/s.

• Maximum simulation time: 14 s.
• Calculate the simulation.

Video of the simulation

Download sim_bsp7.mp4
