Draughts (3-D)

3-D Standard > Process > Trim > Shape draughts

You use this function to model so-called draughts by inclining surfaces.

1. First specify the processing plane by identifying two edges to define the rotation axes. Proceed as you would do with the specification of processing planes. HiCAD highlights the processing surface and the rotation direction in colour.
2. Enter the desired angle of inclination.
3. Then specify the surface that you want to be inclined.

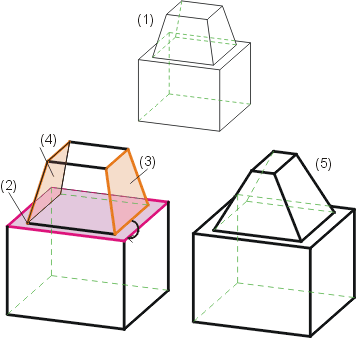

(1) Original part, (2) Reference surface, (3) and (4) Selected surfaces, (5) Draught and rotation angle-15°
